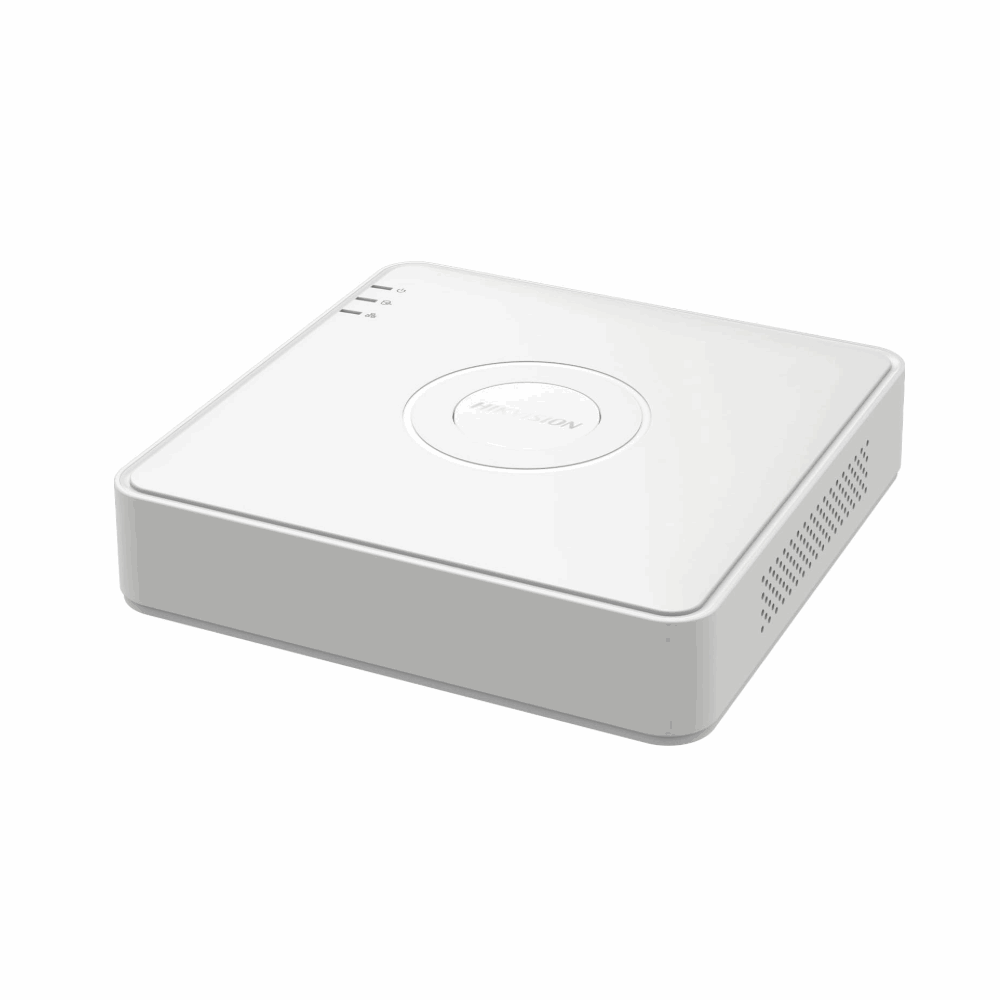

The Hikvision DS-7104HGHI-M1/T
is an extremely compact and cost-effective 4-channel digital video recorder featuring standard deep learning analytical capabilities.
Built in a space-saving Lite Mini 1U chassis, this DVR is perfect for small business storefronts, residential properties, and back-office management looking for smart perimeter filtering on a budget.
Key Features:
Motion Detection 2.0: Enabled by default across all analog feeds, utilizing AI algorithms to categorize humans and vehicles, drastically reducing false alerts sparked by non-threatening movements.
H.265 Pro+ Compression: Employs industry-leading encoding architecture to optimize storage efficiency and ensure smooth remote network transmission without losing fine video details.
Audio Over Coaxial: Supports direct sound recording over existing BNC coaxial cables from audio-enabled cameras, cutting down on installation overhead and wiring complexity.
5-in-1 Adaptive Inputs: Fully bridges HDTVI, AHD, HDCVI, CVBS, and IP signals automatically for hassle-free backwards compatibility with diverse camera environments.
Flexible IP Extension: Accommodates 1 pure network camera feed out-of-the-box, with structural headroom to expand up to 5 IP channels at a max resolution of 2 MP.
Technical Specifications:
Analog Video Input: 4-ch BNC interfaces.
Encoding Resolution: 1080p Lite / 720p / WD1 / 4CIF @ 25-30 fps.
Video Formats: H.265 Pro+, H.265 Pro, H.265, H.264+, H.264.
Display Ports: 1x HDMI & 1x VGA outputs with full-HD simultaneous viewing.
Internal Storage Slot: 1 SATA interface supporting an HDD capacity of up to 4 TB.
I/O Connectivity: 1x RJ45 10/100 Mbps network port, 2x Rear USB 2.0 ports, 1x Audio Input/Output.
